AMAG nanometro

Chip-AMAG7 Hardmask LineSpace, 100 nm depth, L50P100 anchor target

Chip-AMAG7 Hardmask LineSpace, 100 nm depth, L50P100 anchor target

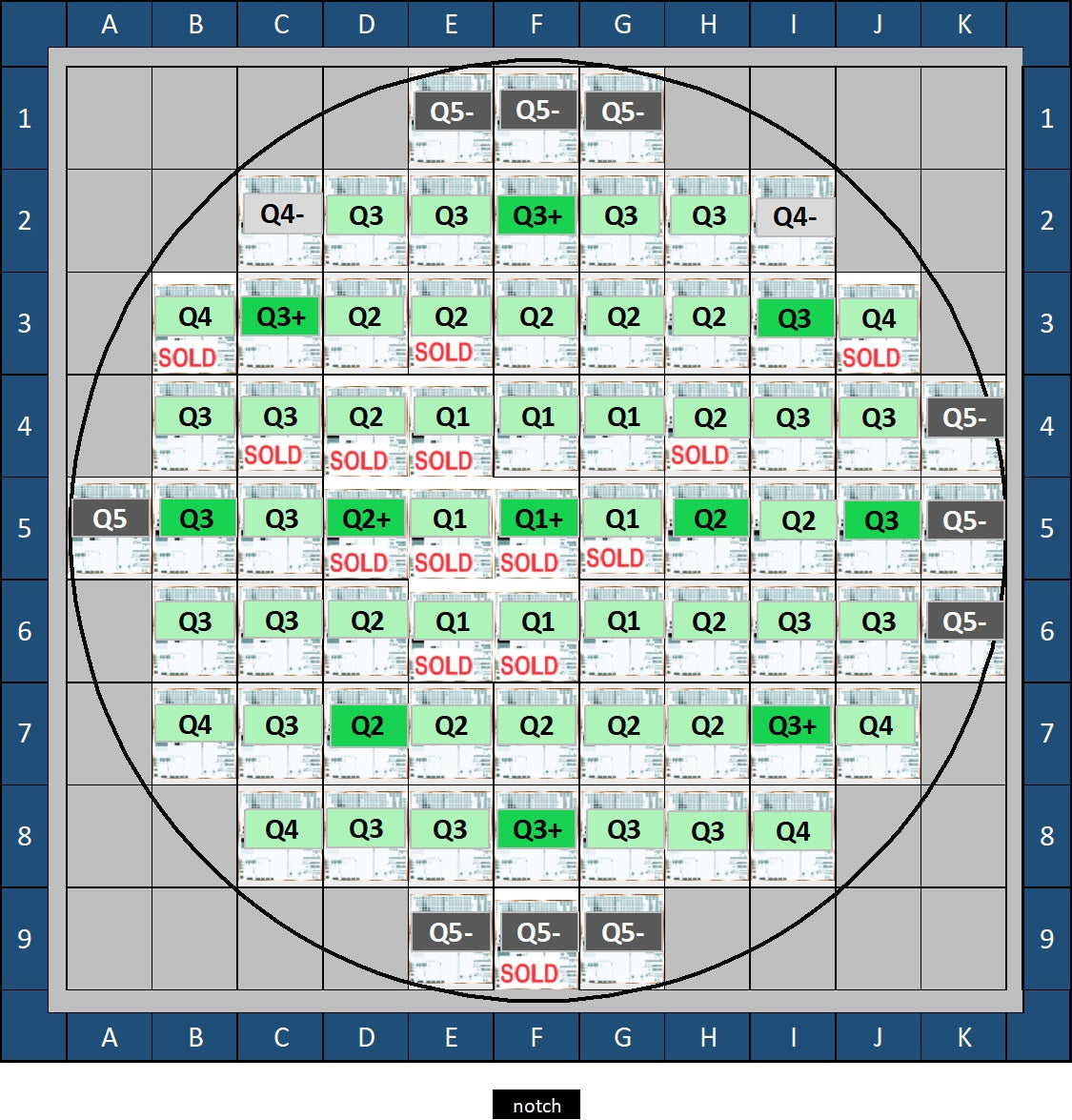

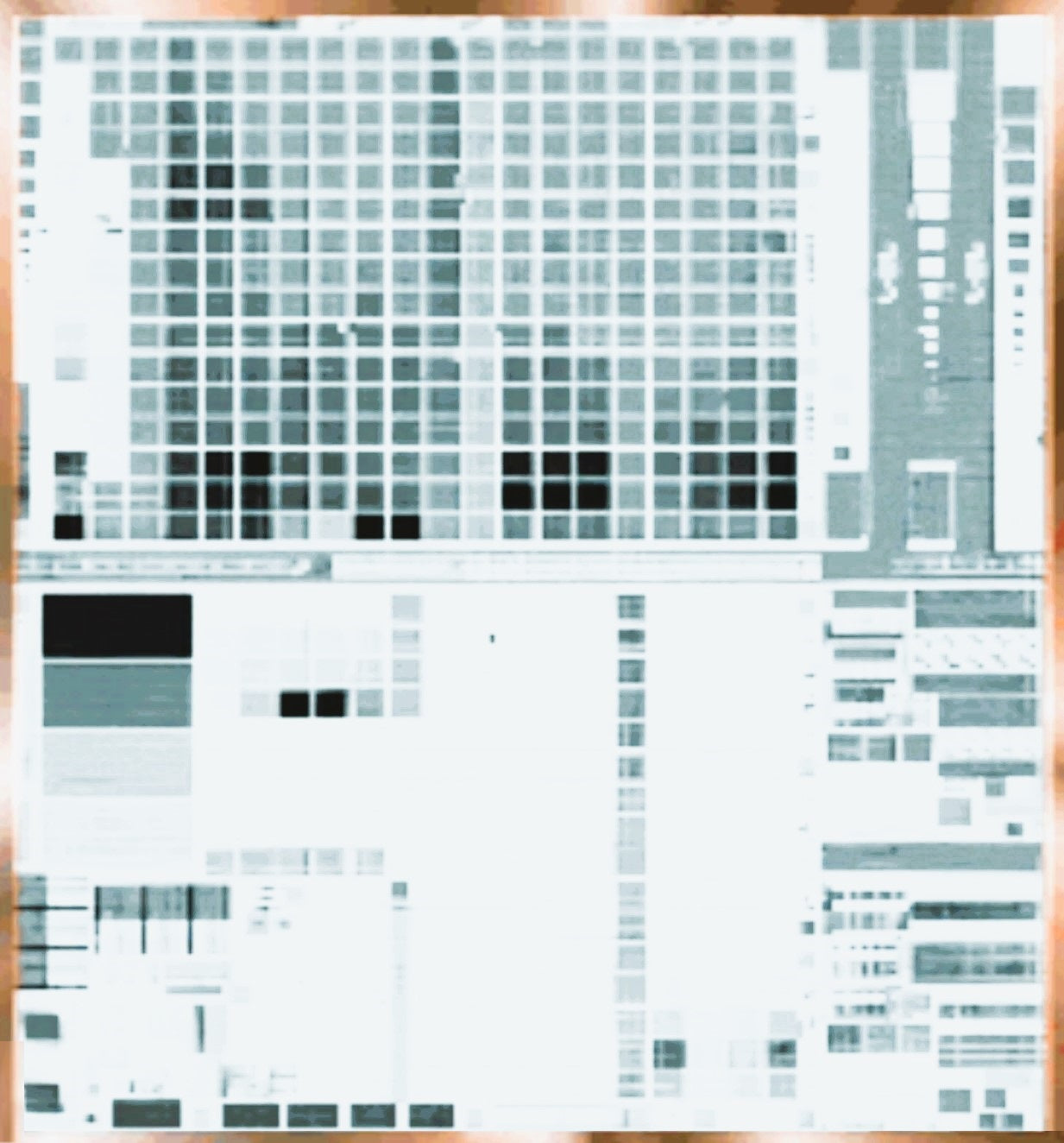

AMAG7 LineSpace module etched into 100 nm SiO2 on Si, terminating on Si substrate. The anchor target is L50P100, downsized to L47P100.

Chip 27mm x 33mm
Process AMAG7, L50P100 LineSpace, 100 nm depth
Stack 100 nm SiO2 on Si, lines etched in SiO2, terminate on Si substrate
Depth 100 nm
Pattern AMAG7, Full Field, 27 mm x 33 mm, 66 die plus 10 partial die
Anchor target L50P100 downsized to L47P100
Imaged targets L50P100, L52P104, L55P110, L60P120, C120 Faux Memory
CD, Anchor Target Bottom CD: ~47 nm
Reference metrology

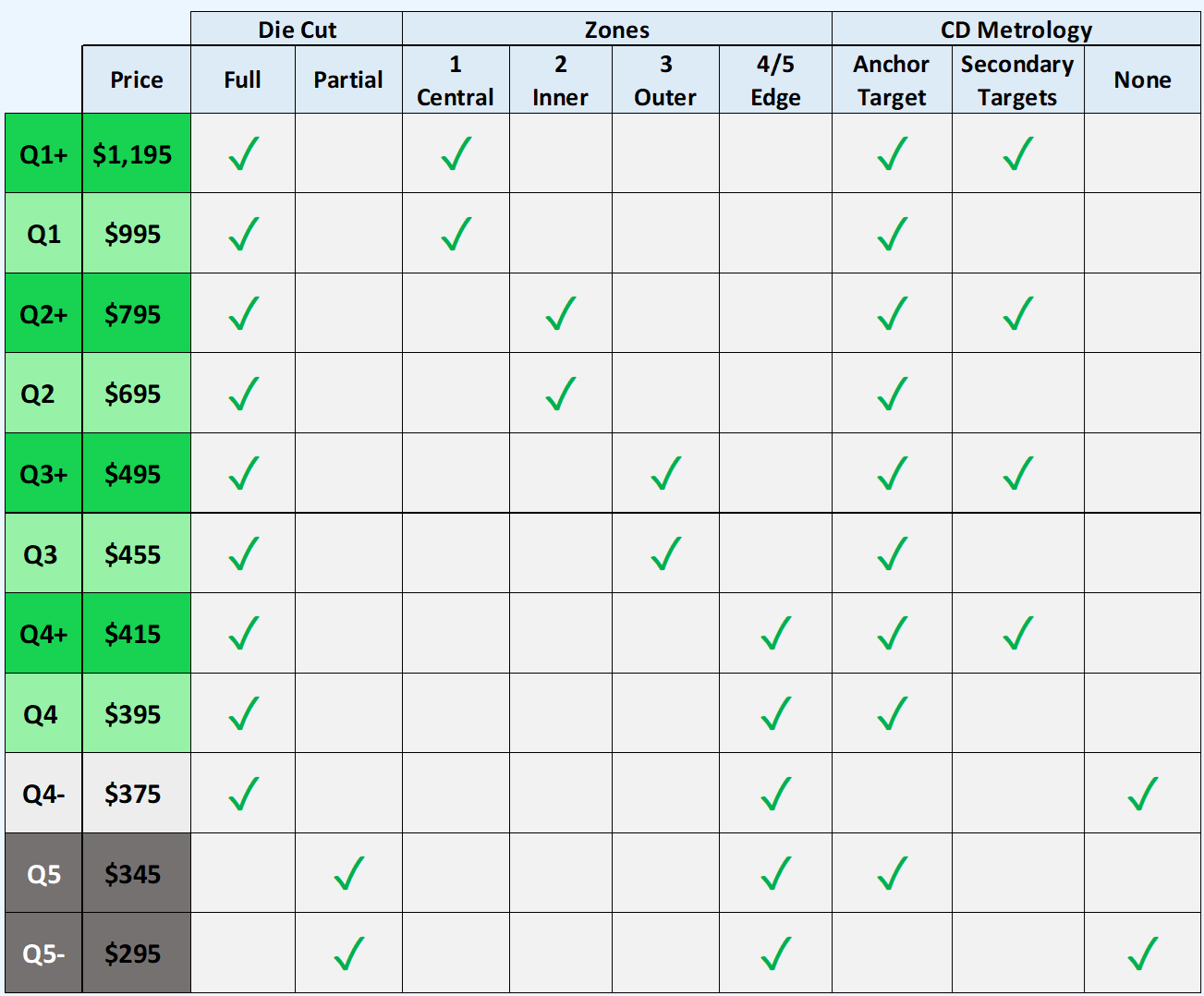

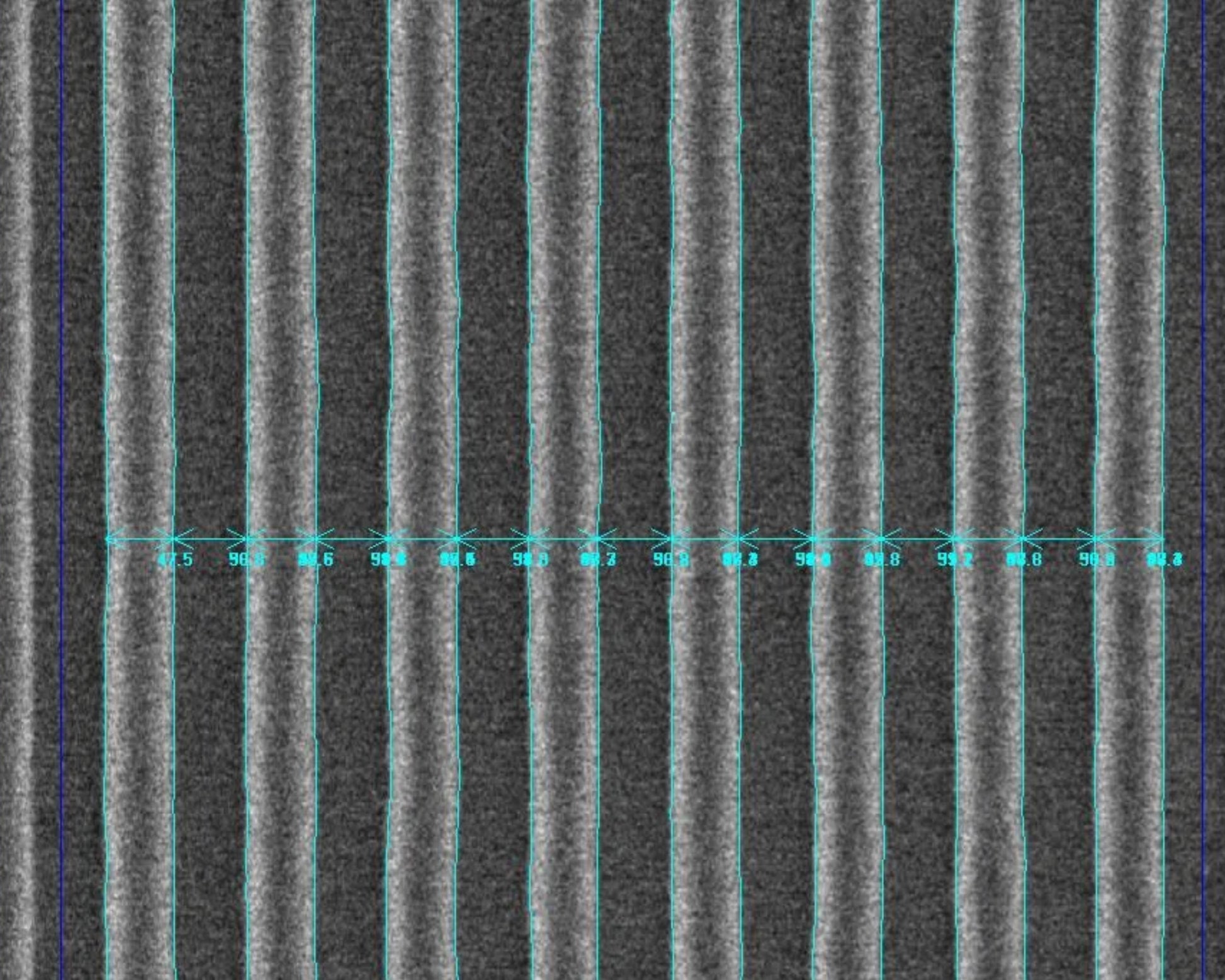

Anchor target: CD measurements & images,all sites/wafer.
10 sites per wafer: CD & images of 4 secondary targets

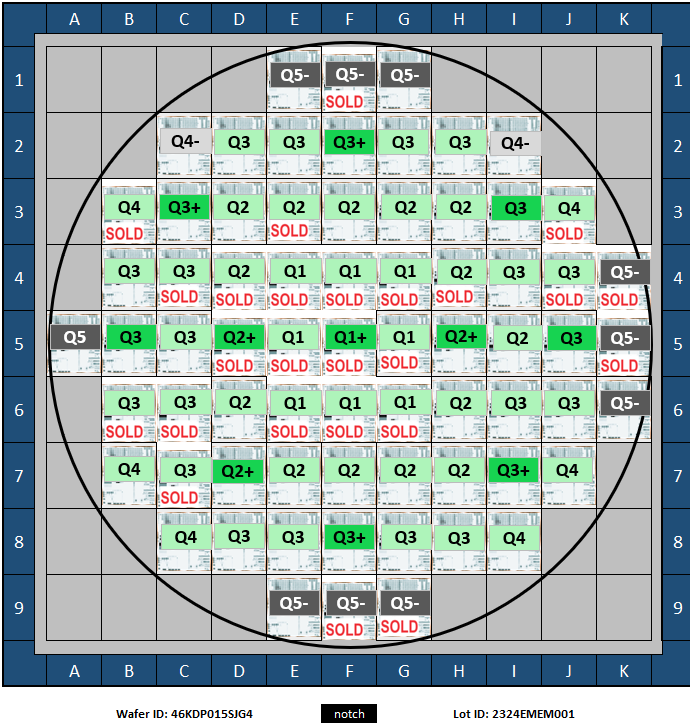

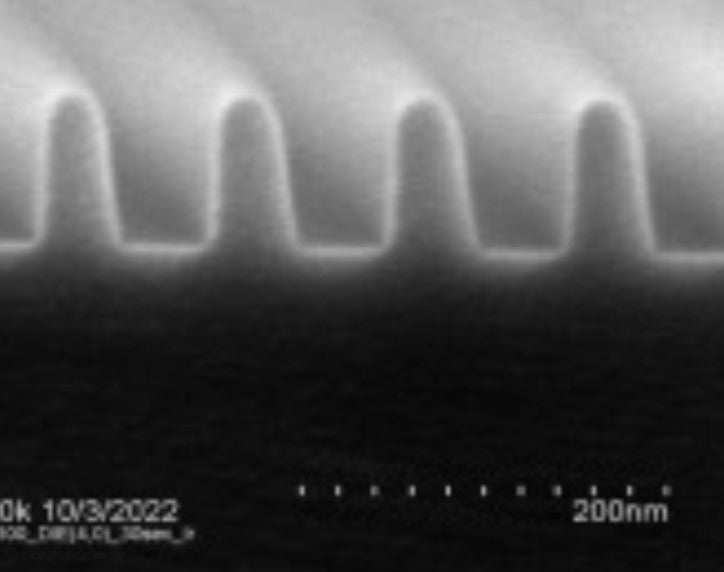

2 XSEM images of profile from sister wafer
